A recent hotel extension near the Promenade ran into trouble when the contractor hit water-bearing sand at just four metres depth. The original scheme called for deadman anchors, but the groundwater and loose granular material meant passive resistance alone would not cut it. We redesigned the restraint system using a combination of active strand anchors drilled into the underlying till, with load cells to verify lock-off. In Blackpool, anchor design has to account for the abrupt transition from the blown sand of the coastal strip into the stiffer Devensian till that sits beneath much of the town centre. Getting the bond length right in that transition zone is what separates a system that creeps from one that holds. Projects closer to the seafront often require supplementary ground investigation to confirm the top of the competent stratum, and we typically pair anchor design with CPT testing to map the sand-till interface accurately before finalising free and fixed lengths.
The sand-to-till transition beneath Blackpool demands more than a textbook bond length. Get it wrong and you are chasing creep before the first load test.
Our approach and scope
Local geotechnical context
Anchor systems in Blackpool fail quietly until they do not. The biggest risk we see is not undercapacity but undetected corrosion in the free length, where a small breach in the sheath lets chlorides attack the strand strand-by-strand. Because the anchor head sits in a pocket that often collects water, the top two metres are the most vulnerable. We insist on watertight head details with a secondary grout seal and, for permanent works, removable caps that allow periodic lift-off testing. Another local issue is the presence of buried peat lenses within the till; if the fixed length is unknowingly grouted into organic material, bond strength drops to near zero. That is why we correlate borehole logs with test pitting near anchor locations whenever the ground investigation flags organic horizons. A single failed anchor in a multi-row system can redistribute load in ways the original frame analysis never anticipated, so redundancy and verifiable performance are non-negotiable.
Applicable standards
BS EN 1997-1:2004 + UK National Annex (Eurocode 7: Geotechnical design), BS 8081:2015 (Code of practice for grouted anchors), BS EN 1537:2013 (Execution of special geotechnical works — Ground anchors), BS 5930:2015+A1:2020 (Code of practice for ground investigations)
Complementary services
Anchor Design to BS 8081 and Eurocode 7

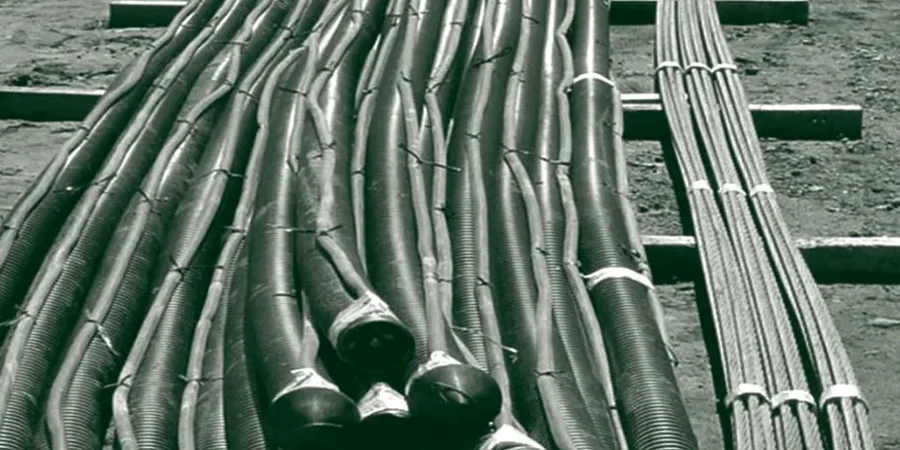

Full design package covering geotechnical and structural verification of active and passive anchors. We determine bond length, free length, tendon configuration, and corrosion protection class based on site-specific ground investigation and the design working life specified in the brief.
On-Site Suitability and Acceptance Testing
We supervise and interpret pull-out tests on sacrificial anchors to confirm ultimate bond stress in the target stratum, then specify the acceptance test programme for production anchors with load-step protocols aligned to BS EN 1537.
Corrosion Risk Assessment and Protection Design
Soil and groundwater sampling for pH, resistivity, chloride, and sulfate content, combined with a site-specific aggressivity classification that drives the selection of single or double corrosion protection in accordance with BS 8081.
Typical parameters
Frequently asked questions
How much does anchor design cost for a typical Blackpool project?
For a scheme with up to 30 anchors and standard ground conditions, design and on-site testing supervision usually falls between £720 and £2,980, depending on whether suitability tests on sacrificial anchors are included, the corrosion protection class required, and the number of load-test cycles specified. Complex multi-row systems or designs requiring finite-element soil-structure interaction modelling sit at the upper end of that range.
What is the difference between active and passive anchors in retaining wall design?
Active anchors are tensioned at installation to a lock-off load, which pre-compresses the wall and limits lateral movement from day one. Passive anchors, by contrast, only develop resistance as the wall moves and the ground deforms. In Blackpool's sands, passive systems often allow more movement than is acceptable next to existing structures, which is why active strand anchors are the default for propping permanent walls in the town centre.
How do you account for the high groundwater along the Blackpool seafront?
We drill the anchor bore through the sand using temporary casing to prevent hole collapse below the water table, then grout the bond length from the bottom up via a tremie pipe. The free length is debonded with a smooth sheath, and the annulus around the sheath is filled with cement grout to provide a secondary corrosion barrier. Watertight head details with neoprene O-ring seals prevent ingress at the bearing plate.
Do you handle the anchor installation or just the design?
We provide the design package, testing specifications, and on-site supervision of the suitability and acceptance test programme. The physical installation is carried out by specialist anchor contractors, and we remain engaged during the works to review drill logs, confirm the top of bond zone against the ground model, and sign off each test result against the acceptance criteria.
