Grain Size Analysis (Sieve + Hydrometer) in Blackpool: BS 5930 Compliance

In Blackpool, assuming a uniform sand base beneath a coastal development can be a costly mistake. The town sits on a complex geology of glacial till, blown sand, and soft alluvial deposits from the Irish Sea, meaning particle size distribution can shift dramatically within a single site. Our laboratory team regularly receives samples from Blackpool projects where site managers relied on visual classification alone, only to discover later that the fines content exceeded the threshold for proper drainage. A proper grain size analysis combining sieve and hydrometer methods eliminates that guesswork. We follow BS 5930:2015 and BS EN ISO 17892-4 procedures, and because many Blackpool sites involve variable groundwater conditions near the Fylde coast, we often recommend pairing this test with an in-situ permeability assessment to correlate gradation with actual drainage performance in the field.

A 3% difference in fines content can change a soil from free-draining to moisture-sensitive — sieve data alone won't catch that transition.

Our approach and scope

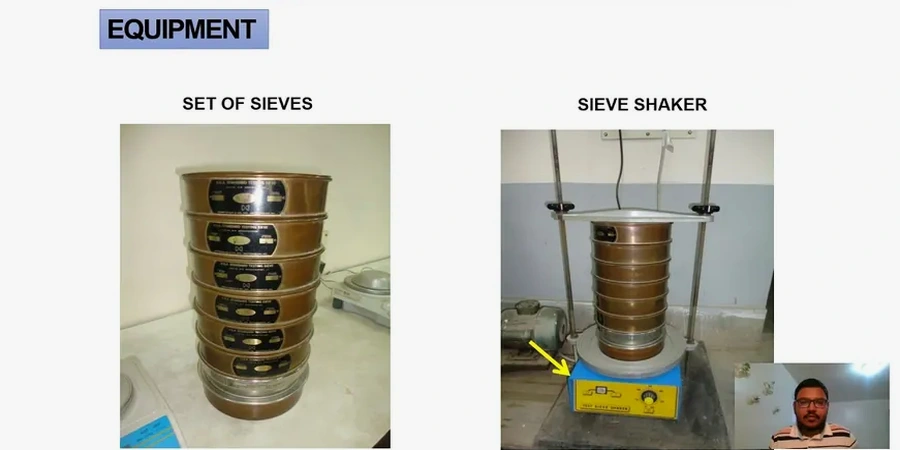

We recently processed a set of samples from a residential foundation on Devonshire Road, where the upper 1.5 metres looked like clean medium sand but the underlying stratum contained 22% silt and clay — enough to shift the soil into a frost-susceptible classification under BS 5930. The sieve analysis starts with a dried, weighed specimen passed through a stack of BS sieves from 75 mm down to 63 µm, with each fraction weighed to 0.1 g resolution. For material passing the 63 µm sieve, we move to the hydrometer phase based on Stokes' law, recording suspension density at timed intervals over 24 hours. The combined curve gives the full particle size distribution, from gravel down to the clay fraction. For construction in Blackpool's former marsh areas near Marton Mere, this data feeds directly into drainage design and frost heave assessment, and we often cross-reference results with Atterberg limits testing to define the plasticity characteristics of the fine fraction for a complete soil behaviour profile.

Grain Size Analysis (Sieve + Hydrometer) in Blackpool: BS 5930 Compliance

Local geotechnical context

Blackpool's coastal exposure creates a specific risk: wind-blown sand deposits that appear well-graded at surface level but contain discontinuous silt lenses that trap water. Combined with the town's high winter rainfall — averaging over 100 mm in December alone — these lenses can create perched water tables that destabilise shallow foundations. A grain size curve that shows a gap-graded distribution or a bimodal pattern is a red flag for internal erosion potential, especially under fluctuating groundwater conditions near the seafront. The uniformity coefficient Cu and coefficient of curvature Cc we calculate from the full curve are direct inputs into filter design, drainage blanket specification, and assessment of suffusion risk — all of which matter more in Blackpool than in inland Lancashire sites because of the aggressive wetting-drying cycles driven by Irish Sea storms.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.biz

Applicable standards

BS 5930:2015 (Code of practice for ground investigations), BS EN ISO 17892-4:2016 (Particle size distribution), Eurocode 7 — BS EN 1997-2 (Ground investigation and testing)

Complementary services

Combined Sieve and Hydrometer Package

Full particle size distribution from 75 mm down to 2 µm clay fraction. Includes oven-dry moisture content, washed sieve preparation, hydrometer analysis with dispersant, and a plotted grading curve with D-values and coefficients. Suitable for BS 5930 soil description and Eurocode 7 foundation design in Blackpool's mixed glacial and coastal deposits.

Single-Sieve or Short-Stack Analysis for Fill Verification

Targeted analysis of 2–3 critical sieve sizes for routine compliance checks on imported granular fill or drainage aggregates. Common for Blackpool projects needing quick confirmation that Type 1 sub-base or filter material meets specification before placement.

Typical parameters

Parameter	Typical value
Test standard	BS 5930:2015 + BS EN ISO 17892-4
Sieve range	75 mm to 63 µm (BS sieve series)
Hydrometer type	ASTM 152H, calibrated at 20°C
Minimum sample mass	500 g (fine soils), up to 30 kg (coarse gravels)
Hydrometer readings	0.5, 1, 2, 4, 8, 15, 30 min; 1, 2, 4, 24 h
Dispersing agent	Sodium hexametaphosphate (40 g/L solution)
Reporting parameters	D10, D30, D60, Cu, Cc, % gravel/sand/silt/clay
Turnaround	3 working days standard, next-day available

Frequently asked questions

How much does a grain size analysis cost for a Blackpool project?

For standard combined sieve and hydrometer testing on a single sample, prices range from £70 to £140 depending on the number of sieve fractions requested and whether accelerated hydrometer reading is needed. Multiple-sample discounts apply — most Blackpool site investigations we handle involve 3 to 6 samples, and we provide a project-level quote within the same day.

Do I need the hydrometer test or is dry sieving enough?

If more than 10% of your sample passes the 63 µm sieve during the washed preparation stage, BS 5930 requires hydrometer analysis to properly classify the fine fraction. Skipping this step means you cannot report silt and clay percentages separately, which affects drainage design, frost susceptibility assessment, and compliance with Eurocode 7 for foundation bearing capacity in Blackpool's silty glacial till areas.

How should I prepare and ship soil samples from a Blackpool site?

We need a minimum of 500 g of disturbed soil in a sealed, labelled plastic bag for fine-grained material, or up to 30 kg for coarse gravelly soils. Keep samples at natural moisture content — do not oven-dry on site. Drop-off at our Lancashire laboratory is available, or we can arrange courier collection from your Blackpool site office. Include the borehole ID, depth interval, and whether the sample is for compliance or investigation purposes.
