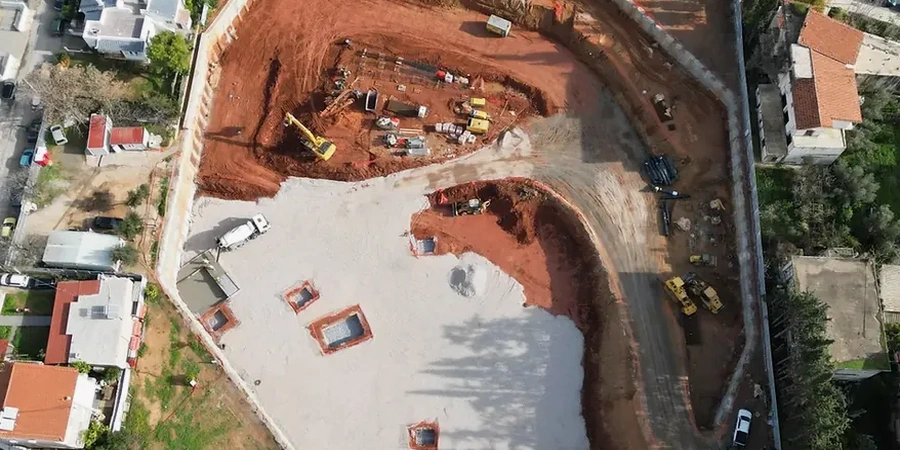

Deep excavation work in Blackpool demands a geotechnical design approach that accounts for the town's specific coastal geology and high groundwater table right from the start. The permeable sand deposits underlying much of the seafront and town centre create lateral earth pressure profiles and seepage conditions that generic designs simply cannot handle. BS EN 1997-1:2004 (Eurocode 7) requires a ground model validated by site-specific investigation, and in Blackpool this means integrating data from rotary drilling through the glacial till and into the Sherwood Sandstone bedrock. Our laboratory triaxial testing on undisturbed samples from these strata feeds directly into the finite element models we use to predict wall deflections and strut loads. Without this level of local calibration, you are designing blind. The town's mix of Victorian-era infrastructure and modern tourism developments also means vibration limits and settlement tolerances are unusually tight, especially along the Promenade and near the Tower. We routinely supplement our ground models with CPT testing to map the transition between loose dune sands and denser marine deposits, and when dealing with soft organic lenses found in low-lying areas behind the seafront we apply stone column ground improvement to stabilise the excavation base before bulk earthworks begin.
An excavation design for Blackpool that ignores the tidal influence on groundwater levels will underestimate lateral loads by up to 30% on the seaward side.
Our approach and scope
Local geotechnical context
The most common mistake contractors make in Blackpool is assuming that sheet piles driven into sand will provide a dry excavation without a proper cut-off into low-permeability strata. The Sherwood Sandstone is often too deep to reach economically, and the overlying sands freely transmit tidal fluctuations straight into the excavation. We have seen projects lose weeks of progress because the initial dewatering design was based on a single falling-head test in a borehole rather than a full pumping test across a tidal cycle. Another critical error is underestimating the surcharge from adjacent buildings: the narrow plots along streets like Lytham Road or Dickson Road mean the excavation face is often within five metres of masonry structures with negligible foundation depth. Our design process includes a mandatory stage for building condition surveys and settlement damage assessment using the Boscardin-Cording method. Without this, you risk claims for cosmetic and structural damage that can exceed the entire earthworks budget. We also insist on excavation monitoring as part of the design implementation: inclinometers behind the wall, piezometers to track pore pressure decay, and precise levelling on adjacent footpaths. The observational method is not an optional extra; it is the only way to manage the residual uncertainties that even the best ground investigation cannot eliminate in a coastal environment like Blackpool's.
Applicable standards
BS EN 1997-1:2004 (Eurocode 7: Geotechnical design), BS 5930:2015+A1:2020 (Code of practice for ground investigations), CIRIA C760 (Guidance on embedded retaining wall design), BS EN 1993-5:2007 (Execution of steel sheet piling)
Complementary services
Excavation design and retaining wall analysis
Full structural and geotechnical design of embedded retaining walls including sheet pile, secant pile, and diaphragm wall options. We run 2D and 3D finite element models using PLAXIS to capture soil-structure interaction, staged excavation effects, and groundwater flow. Each design package includes wall bending moment and shear force envelopes, prop or anchor load tables, base heave verification, and global slope stability checks for the temporary works condition. We handle the technical submission to building control and Network Rail where excavations fall within the railway consultation zone.
Dewatering design and groundwater impact assessment
Hydraulic design of construction dewatering systems based on aquifer pumping test interpretation and analytical modelling. We define well spacing, screen depth, pump capacity, and discharge arrangements. The service includes an environmental impact assessment for groundwater lowering, predicting the drawdown cone extent and identifying any licensed abstractions or sensitive receptors within the radius of influence. For excavations close to Blackpool seafront, we model tidal boundary conditions explicitly to ensure the dewatering system functions across the full spring-neap cycle.
Typical parameters
Frequently asked questions
How long does the geotechnical design process for a deep excavation take?
A typical design programme from receipt of a complete ground investigation report to issue of construction drawings runs four to six weeks. This covers parameter selection, wall type option analysis, structural design to Eurocode 7, dewatering design, and the preparation of a geotechnical design report. Projects requiring complex 3D modelling or extensive third-party approvals may extend to eight weeks. We recommend engaging us early; waiting until the ground investigation is complete before starting the design pathway can compress the programme unnecessarily.
What ground investigation data do you need before starting the design?
We require borehole logs to at least 1.5 times the proposed excavation depth, with SPT N-values recorded at regular intervals. Undisturbed sampling for triaxial and oedometer testing is essential for clay units. In-situ permeability tests (falling head or pumping tests) must be carried out in each distinct hydrogeological unit. CPT profiles are highly recommended, especially through the sand layers, as they provide a continuous record of relative density and can identify thin clay bands missed by rotary drilling. Laboratory particle size distribution and Atterberg limit tests complete the required dataset.
What is the cost of a deep excavation design in Blackpool?
The fee for a deep excavation design typically ranges from £1,580 for a straightforward single-phase cut with simple ground conditions and a small footprint, up to £7,320 for a multi-level basement requiring staged excavation analysis, complex dewatering modelling, and a full Category 3 check per Eurocode 7. The final figure depends on the number of design sections, the retaining wall type, and the extent of construction-stage support required. We provide a fixed-price proposal after reviewing your ground investigation data and architectural plans.
Can you design temporary works excavations that will later become permanent basements?
Yes, we regularly design excavations that serve as both temporary works and the permanent basement retaining structure. This dual-function approach requires us to check the wall for both the short-term construction condition and the long-term service condition, including permanent groundwater pressures and any future excavation or loading on the retained side. The durability specification for concrete or steel elements must also meet the 50- or 100-year design life required by BS EN 1992 and BS EN 1993. We coordinate the geotechnical design with the structural engineer responsible for the basement slab and superstructure to ensure compatibility at the wall-to-slab connection.
How do you address the risk of sand boiling and base heave in Blackpool's high groundwater conditions?
Base stability is a critical design check for any excavation in Blackpool where the groundwater level is high. We evaluate the factor of safety against hydraulic heave using the Terzaghi-Peck method with site-specific earth pressure coefficients derived from triaxial testing. If the factor is below the required value, we consider extending the wall toe into a lower-permeability stratum, installing a jet grout plug, or applying a permanent dewatering system with cut-off walls. For excavations in loose sands, we also check against fluidisation and run seepage analyses to confirm that exit gradients at the base remain below the critical value throughout each excavation stage.
